Elastic Stack Lab01

In this lab we will be installing and setting up Elasticsearch on an Ubuntu VM.

Install Elasticsearch

Elasticsearch is based on Java, so we need to install a Java environment.

Install pre-requisites

sudo apt update
sudo apt install apt-transport-https

Install Java

sudo apt install openjdk-8-jdk

Now we can install Elasticsearch itself.

First let’s add the Elasticsearch GPG key to our VM

wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -

Now we need to add the Elasticsearch repo to our VM.

echo "deb https://artifacts.elastic.co/packages/6.x/apt stable main" | sudo tee -a /etc/apt/sources.list.d/elastic-6.x.list

Finally let’s install Elasticsearch

sudo apt update
sudo apt install elasticsearch

After this completes we need to allow external access to our Elasticsearch instance.

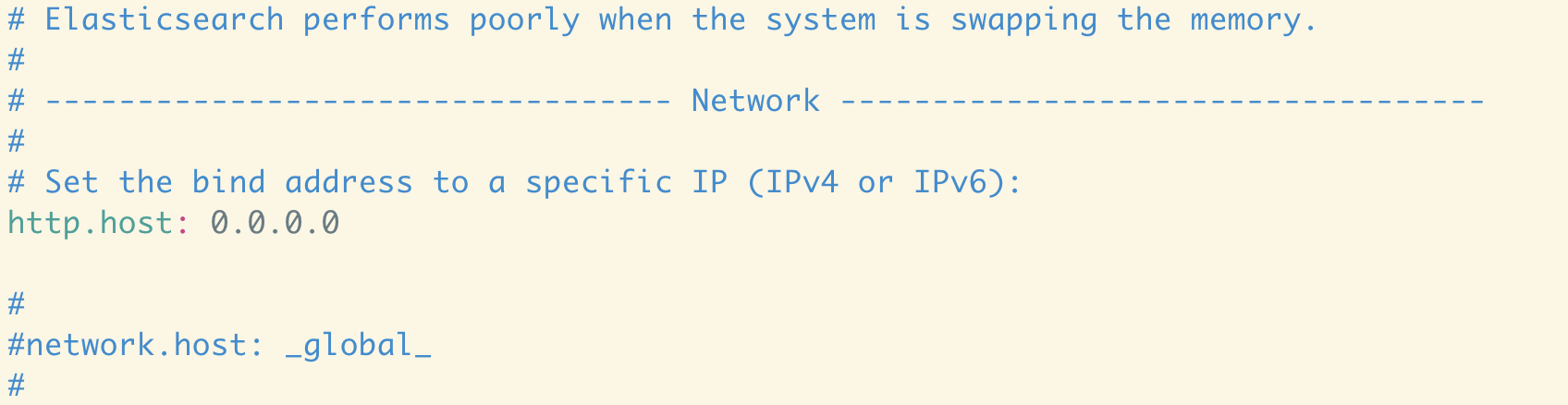

Edit elasticsearch.yml

sudo vi /etc/elasticsearch/elasticsearch.yml

Change http.host to 0.0.0.0

(in vi, use the arrow keys to move where you want to edit, then hit “i” to enter “insert mode” and make your edits. When done, hit ESC to exit “insert mode”, then type :wq to write your changes and quit vi.)

Now we have to restart the daemon so it re-reads the updated configuration file.

sudo /bin/systemctl daemon-reload

Enable the Elasticsearch service and start it up.

sudo /bin/systemctl enable elasticsearch.service
sudo /bin/systemctl start elasticsearch.service

If everything restarted without any errors Elasticsearch has been successfully installed!

Let’s confirm it is working as expected by connecting to the API.

curl 127.0.0.1:9200

$ curl 127.0.0.1:9200
{
  "name" : "itdyml7",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "lRpAt5psT1Cr-u6hS_bc2Q",
  "version" : {
    "number" : "6.2.3",
    "build_hash" : "c59ff00",
    "build_date" : "2018-03-13T10:06:29.741383Z",
    "build_snapshot" : false,
    "lucene_version" : "7.2.1",
    "minimum_wire_compatibility_version" : "5.6.0",
    "minimum_index_compatibility_version" : "5.0.0"
  },
  "tagline" : "You Know, for Search"
}

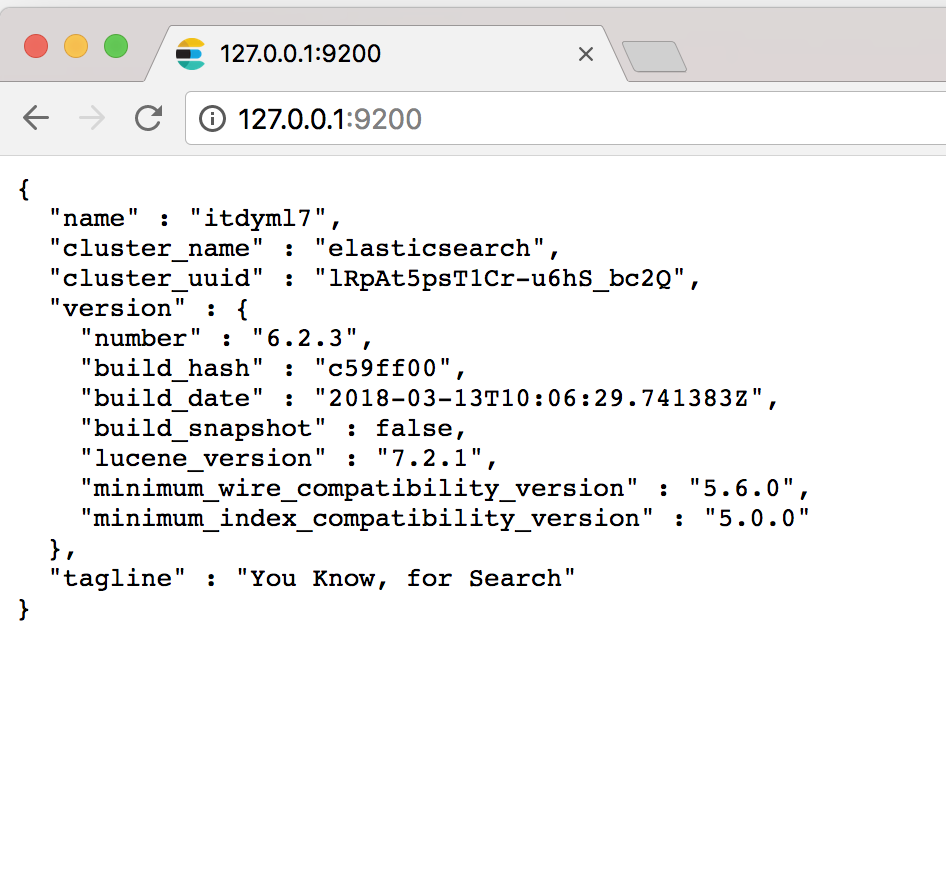

You can also test it by loading http://VMIP:9200 in a browser, and if you see something like the following it’s working correctly.

Loading data into Elasticsearch

Now that we have Elasticsearch installed it needs some data to aggregate and index. Let’s go ahead and load in the complete works of William Shakespeare

Download and create the mapping

wget http://bit.ly/es-shakes-mapping -O shakes-mapping.json
curl -H 'Content-Type: application/json' -XPUT 127.0.0.1:9200/shakespeare --data-binary @shakes-mapping.json

Download the data

wget http://bit.ly/es-shakes-data -O shakespeare_6.0.json

Now we are going to load this data into Elasticsearch through it’s API

curl -H 'Content-Type: application/json' -X POST 'localhost:9200/shakespeare/doc/_bulk?pretty' --data-binary  @shakespeare_6.0.json

And finally let’s go ahead and search the data we just inserted.

curl -H 'Content-Type: application/json' -XGET '127.0.0.1:9200/shakespeare/_search?pretty' -d '
{
"query" : {
"match_phrase" : {
"text_entry" : "to be or not to be"
}
}
}
'

We are searching all of the data we inserted for “to be or not to be” and our result is… Wow, pulled it out very quickly and we now know that it came from Hamlet.

{
  "took" : 153,
  "timed_out" : false,
  "_shards" : {
    "total" : 5,
    "successful" : 5,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : 1,
    "max_score" : 13.874454,
    "hits" : [
      {
        "_index" : "shakespeare",
        "_type" : "doc",
        "_id" : "34229",
        "_score" : 13.874454,
        "_source" : {
          "type" : "line",
          "line_id" : 34230,
          "play_name" : "Hamlet",
          "speech_number" : 19,
          "line_number" : "3.1.64",
          "speaker" : "HAMLET",
          "text_entry" : "To be, or not to be: that is the question:"
        }
      }
    ]
  }
}

Lab Complete
