Elastic Stack Lab16
In this lab we are going to install Filebeat and a couple plugins to play around with.
Let’s start by installing Filebeat
sudo apt-get update && sudo apt-get -y install filebeat
Now let’s go configure Filebeat.
cd /usr/share/filebeat/bin
sudo filebeat setup --dashboards
sudo mv /etc/filebeat/modules.d/apache2.yml.disabled /etc/filebeat/modules.d/apache2.yml
sudo vi /etc/filebeat/modules.d/apache2.yml
In the file edit var.paths for access logs to point to your home directory
var.paths: ["/home/<user>/logs/access*"]
Disable error logs by changing to look like below:
# Error logs
error:
enabled: false
Now in our home directory we need to create logs directory and copy the access logs over
mkdir ~/logs
cd ~/logs
cp ~/access_log ~/logs/
We have an access log for Filebeat to work with so let’s start it up
sudo /bin/systemctl start filebeat.service
Kibana and Filebeats
Now that we have Filebeats shipping our logs to Elasticsearch we should be able to see those changes in Kibana.
Start by browsing to the Kibana dashboard
Click on the “Management” tab to confirm a new index pattern for the filebeat logs was created.
Great so now we’ve got all the data from Filebeat directly imported into Elasticsearch.
Let’s play around with this data now.

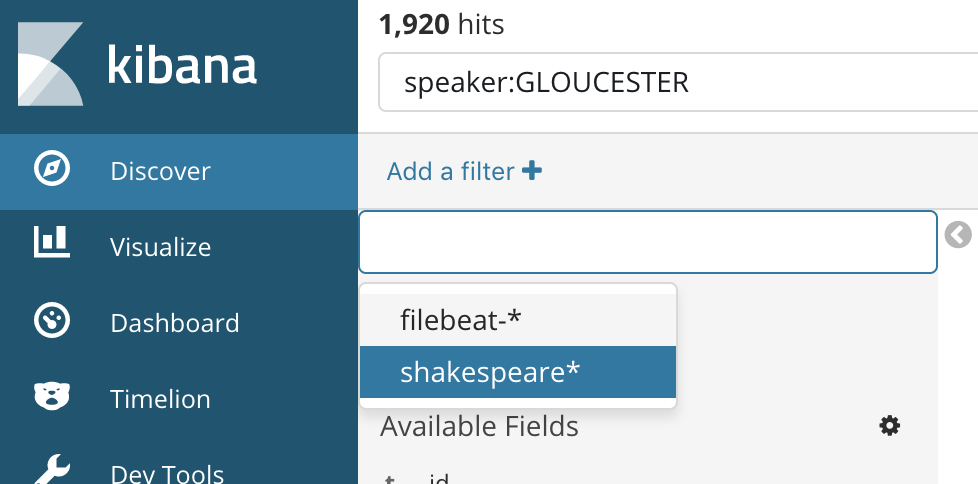

In Kibana click on Discover on the left hand side, then. Where it says shakespeare* click the drop down arrow and choose filebeat-*
You’re going to get “No results found”. Don’t worry there is data it’s just set to only show the last 15 minutes by default so we need to adjust the time range.

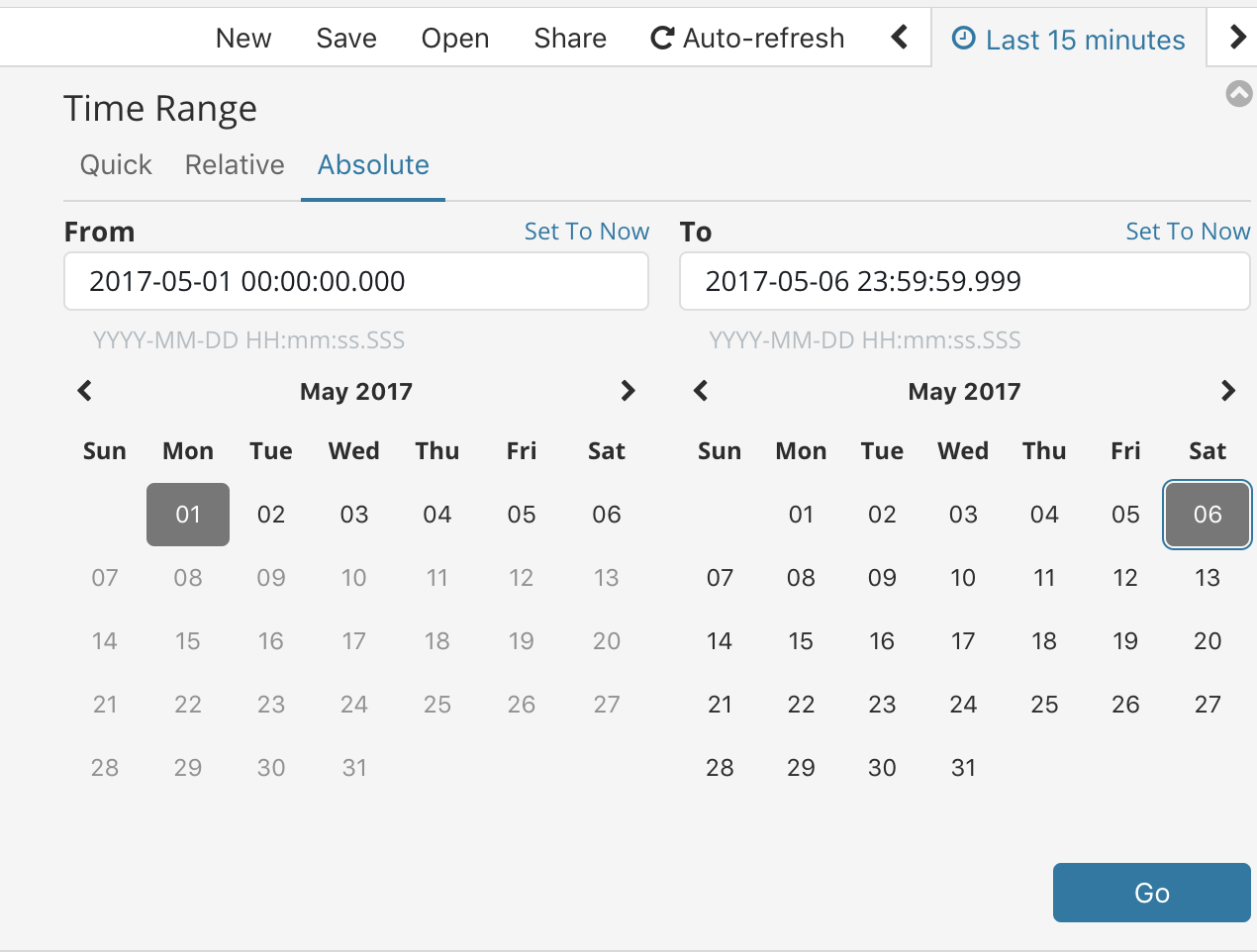

In the top right hand corner of the window click Last 15 minutes and change it to Absolute and then select the first week of May.
After this loads, you’ll see a lot of log entries which can be filtered to provide valuable information.
On the Discover screen, left hand side click on when hovering over apache2.access.response_code:500. This will show you all the 500 errors for the selected time period.
Now let’s turn some of that info into graphs and charts.

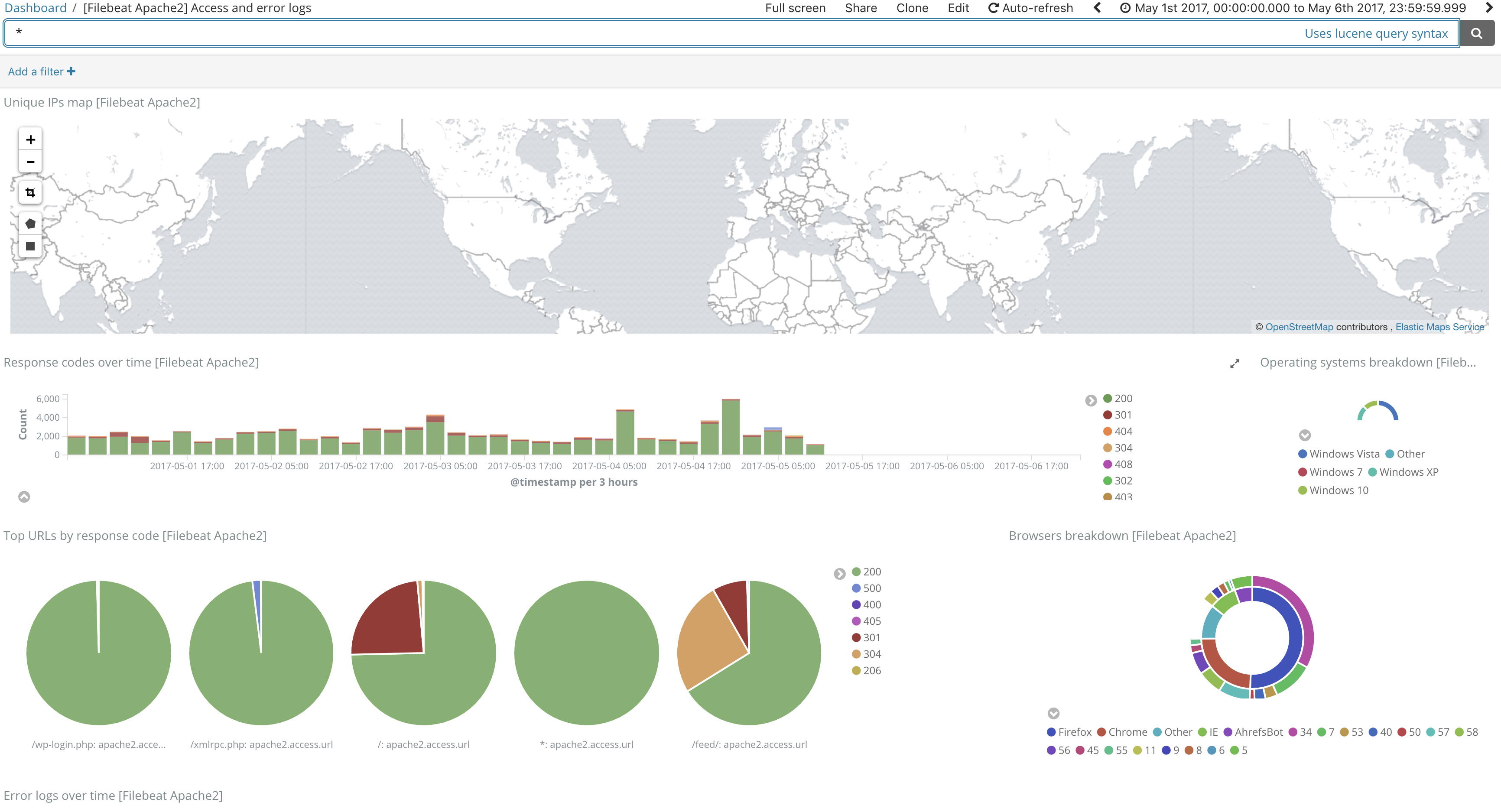

On the left click on Dashboard and choose [Filebeat Apache2] Access and error logs
You should see something like this
Now we can see how easy it is to stream logs to Elasticsearch and use Kibana to create graphs and charts.
